Sidefold A150

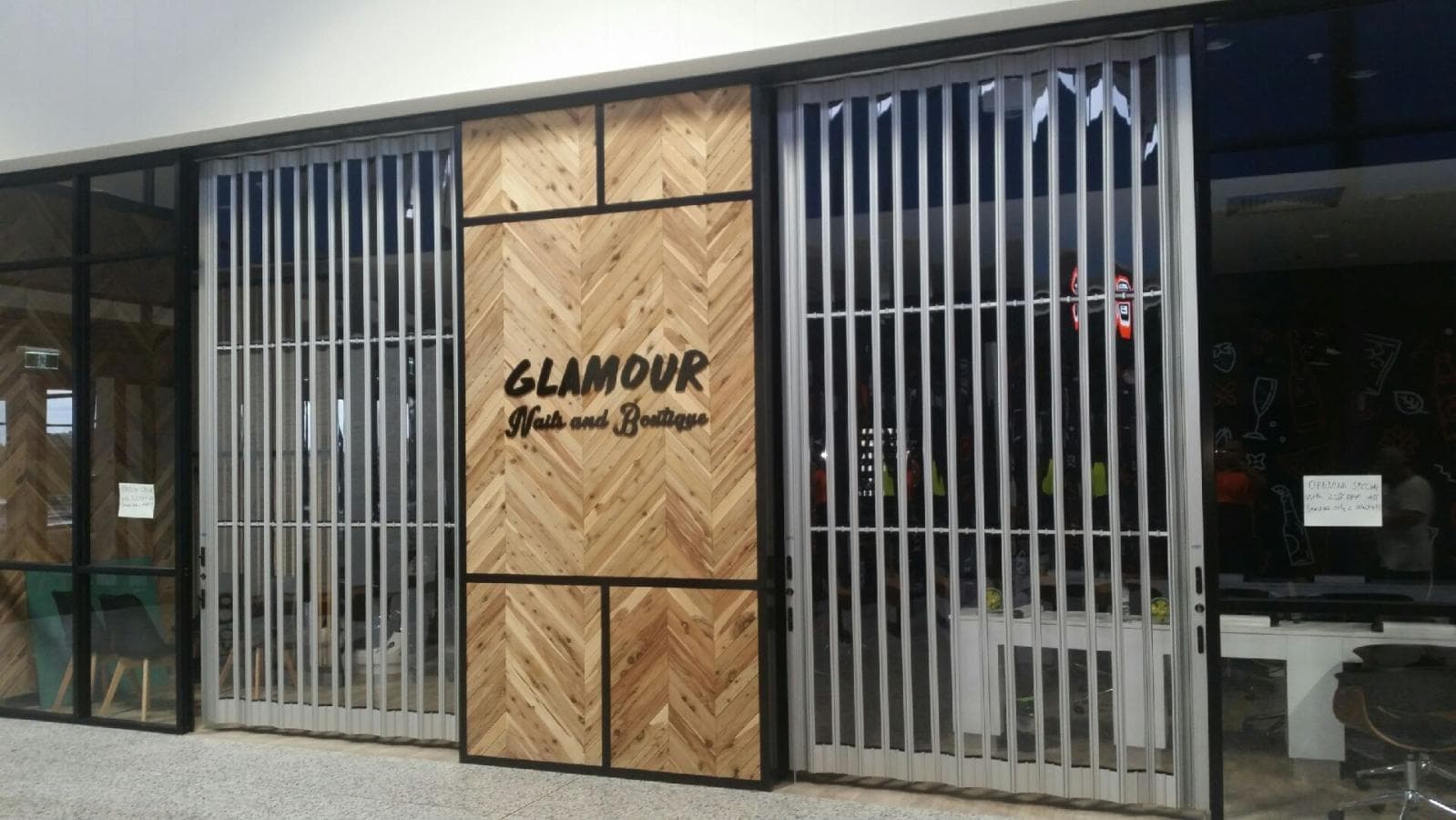

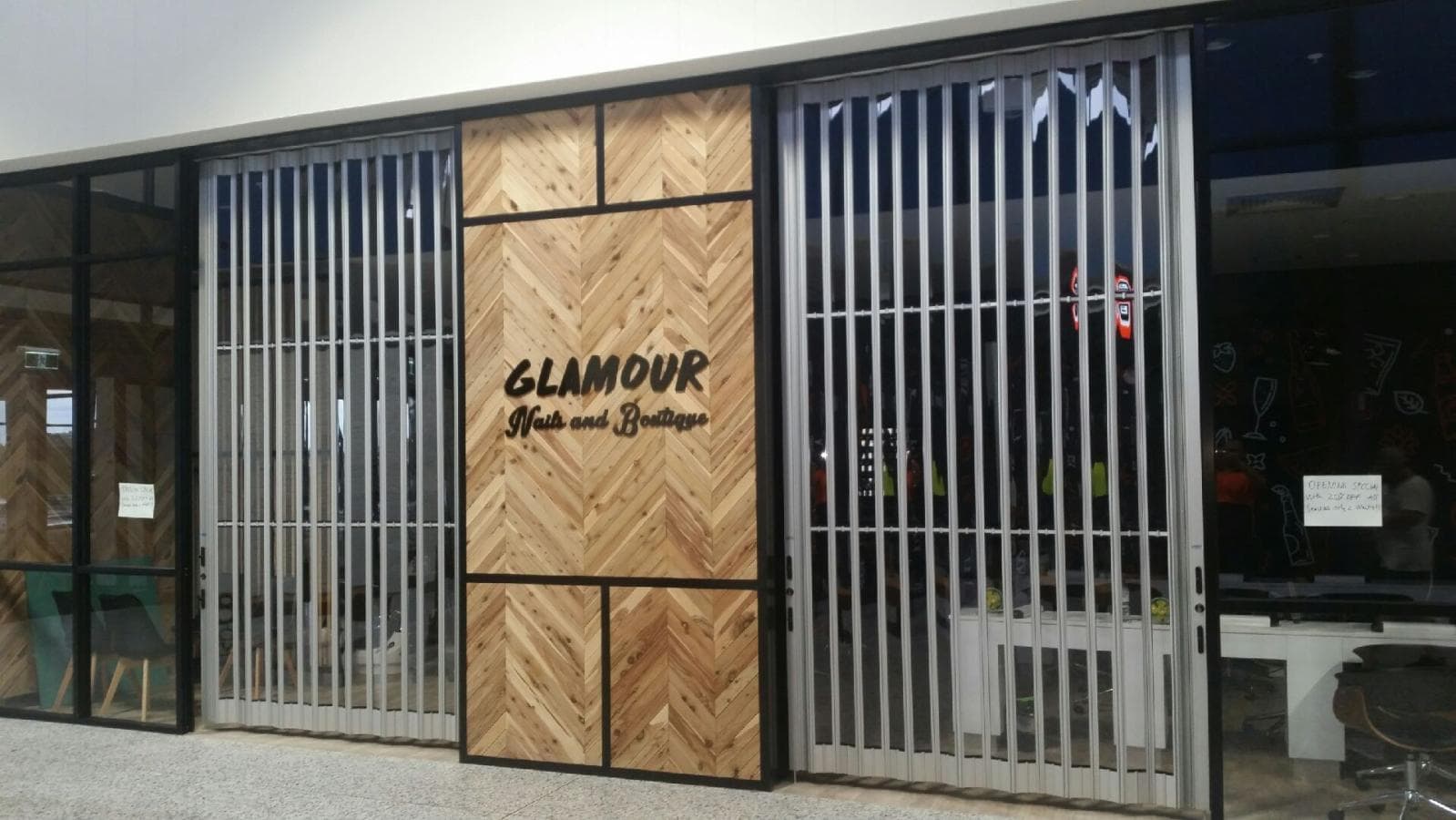

The Arco A150 Side Fold is produced to provide maximum vision with the clarity of glass whilst providing security, and protection against the elements.

The Arco Folding Closures is a great way to secure Openings of endless widths and still providing full vision frontage.

​Ideal and specifically for Shopfronts, Office reception areas, Canteen (Kiosk), Restaurants, Cafes, Sporting clubs, Clubs in general, Education facilities, Hospitals just to name a few.

The introduction of Aluminium infill increases the strength and security of the door. The Arco A150 is ideal for when full walk through traffic is warranted. It also enables the use of our mesh and grille infill to provide added ventilation.

The ARCO A150 can be manufactured up to Maximum height of 4200mm with the width being endless.

For technical information refer to our technical sheet A2

The Arco Side Fold A150 is constructed by a unique vertical hinge system with UV stabilized Polycarbonate or Aluminium infills that interlock.
Panel width for the A150 is 150mm. The End posts or Intermediates which incorporates locking is connected by using two half panels adding up to 100mm in overall stack thickness. A locking post is added every 2700-3000mm in width.

The Operation is by hand which requires user to manoeuvre door buy pushing or pulling and or feeding doors into pockets or cupboards.
Our high- grade bearing wheels and tracking ensuring ease of operation of our ARCO Side Fold A150.

Standard finish is Clear (natural) anodised but can be powder coated as an optional extra.

Standard locking includes two-way keyed mortice lock mounted at 900 high and locks into holes drilled in top track and dust proof ferrules fitted to finished floors.
Our Euro cylinders give options of rear snib for keyless exiting. As well as master keying.

The fitting of structural supports is completely the responsibility of the shop fitter or builder.

The ARCO A150 uses an Aluminium Overhead Track system.
Dimensions being 36mm wide by 36mm deep. Arco also uses standard curved tracks 407mm radius for our A150.

-UV stabilised extruded polycarbonate
-Perforated Mesh
-12mm Tube vertical bar grille
-Solid Aluminium

Closure weight starts from 7kg per square meter up to 16kg depending on infill and door type.

Stacking Depths or Compaction can vary depending on number of posts used as well as curves in track. The rule of thumb however is A150 stacks to 18% to 21% of total width.
