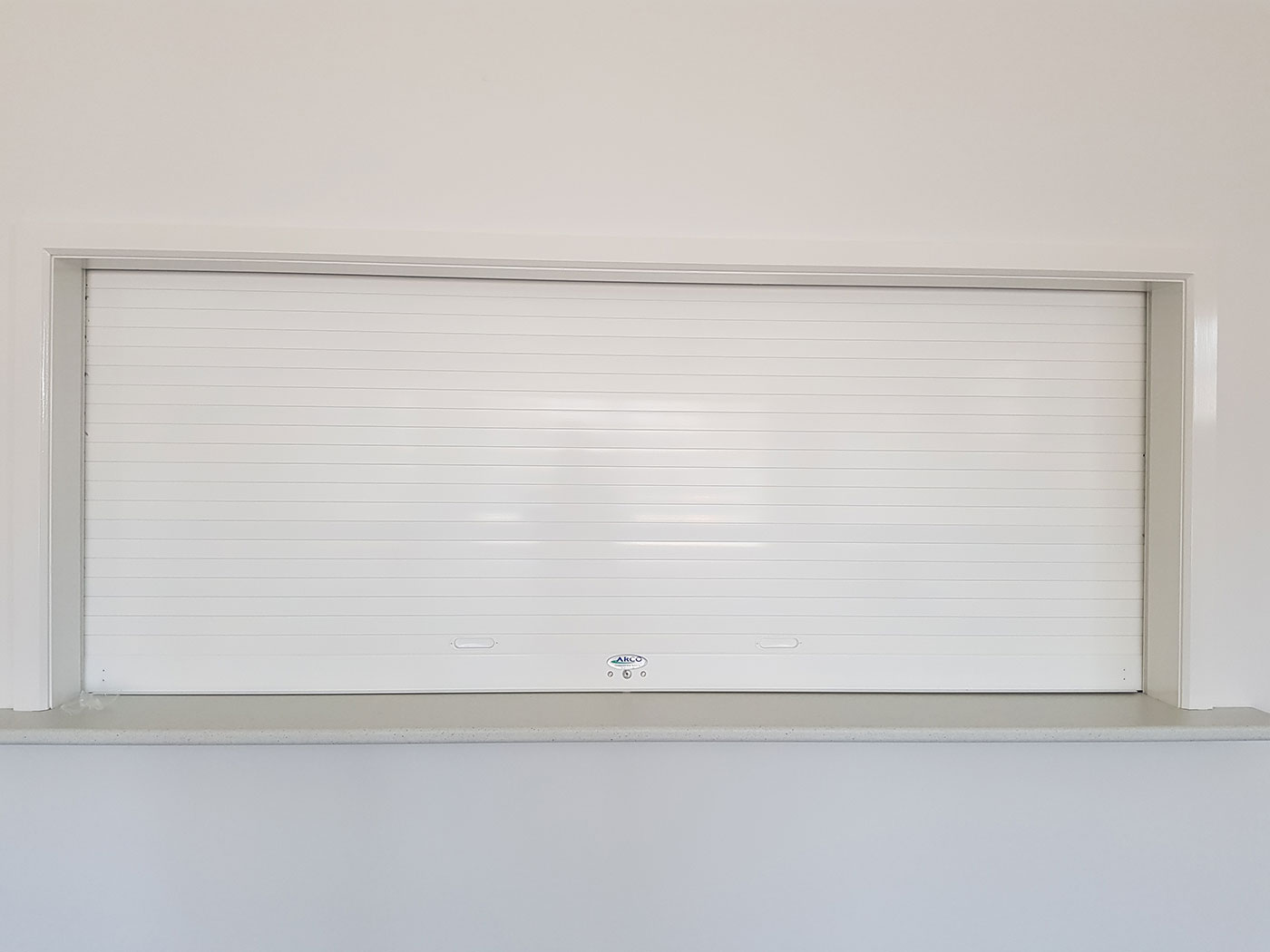

The ARCO Slimline is ideal for smaller openings such as reception areas; canteens and kiosks; Meter room cupboards; hospitals and educational facilities.

The Arco Slimline can be manufactured up to 3000mm wide as a single door for manual operation. Openings wider than this will incorporate removable mullions allowing the use of multiple doors. The simple option of motorisation is also available.

The Arco Slimline curtain is constructed with interlocking extruded aluminium slat with a face depth of 42mm x 1.5mm thick.  The Bottom Rail which incorporates any locking requirements sits at a height of 90mm as standard.

Manual operation is by the use stainless steel handles and a pull hook to push open and pull closed where door is out of reach. Motorised Open/Close is via Standard flush fit key switch or option of remotes, card reader etc.  All motorised doors are supplied with battery backup as standard.

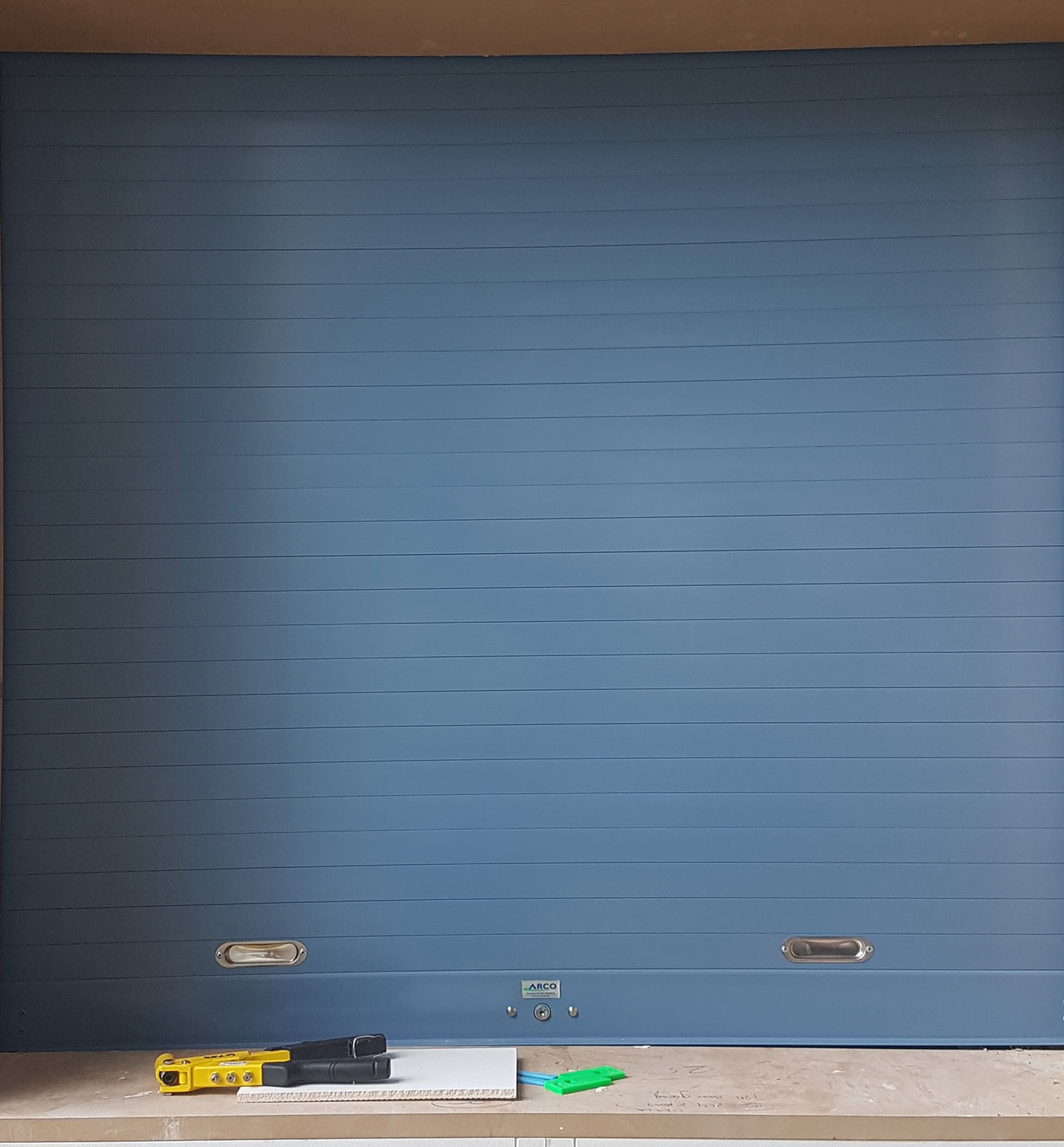

Standard finish is Clear (natural) anodised but can be powder coated as an optional extra.

Standard locking includes two-way keyed mortice lock mounted centrally in bottom rail and lock into holes drilled in side guides.

Options include rear snib for keyless exiting. As well as master keyable Lockwood profile.

Brackets constructed with slotted angle made from 90mm x 40mm mild steel.

Side guides are 50mm deep and 33mm wide. Fitted either between walls or face fixed behind nib walls.

Mullions at 180 degrees are 150mm wide. Our unique design enables any special angle requirements.

The drum is manufactured using various sized spiral ducted tube ranging from 250mm (motorised), 229mm and 150mm; fully enclosed with bearing end caps on a 33mm shaft using Arco’s engineered helical coil springs which are designed to counterbalance the curtain weight when tensioned.
