The Arco Series 3 is designed for predominately larger openings and high security needs as well as protection against the elements when in external applications.

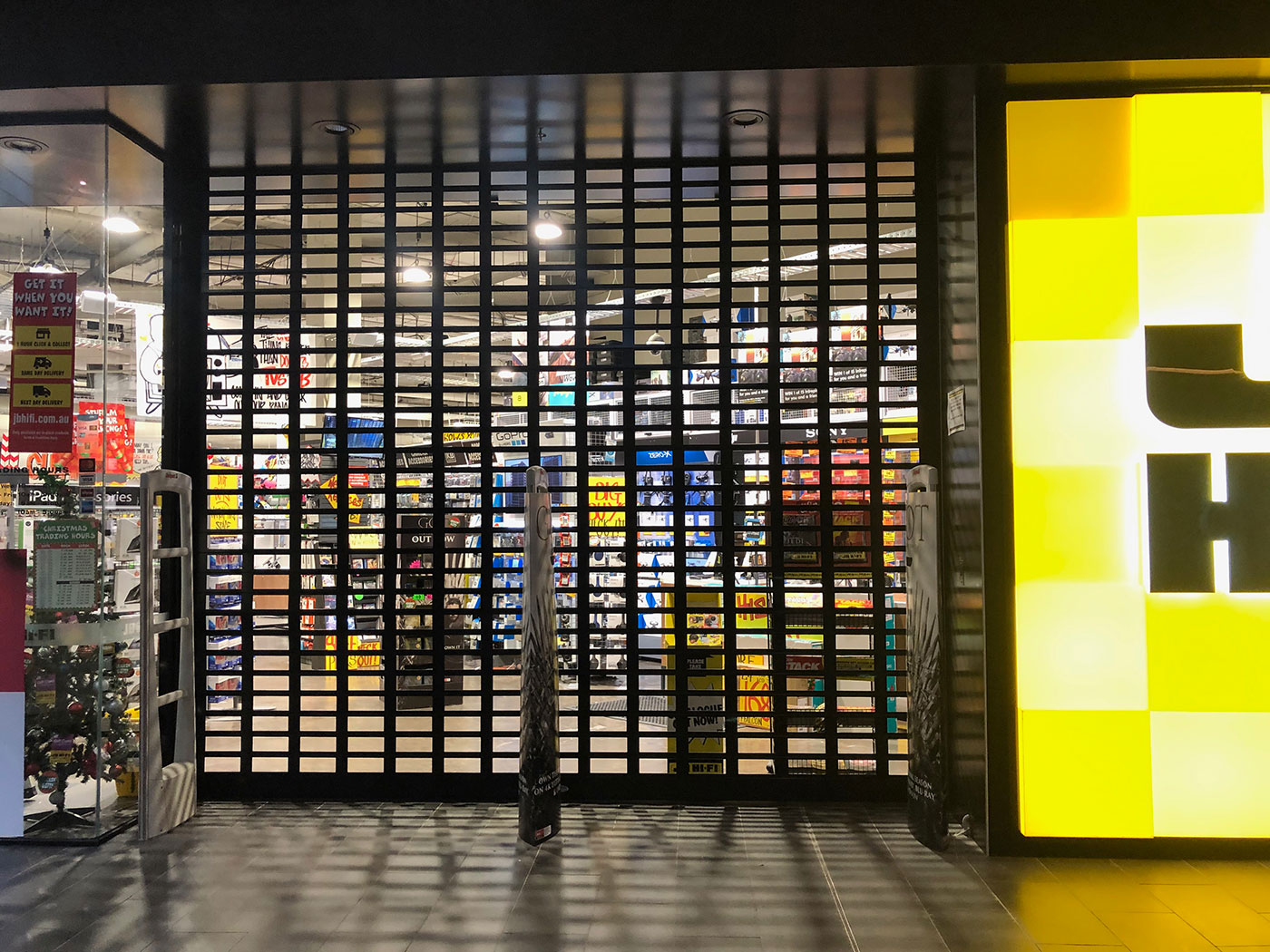

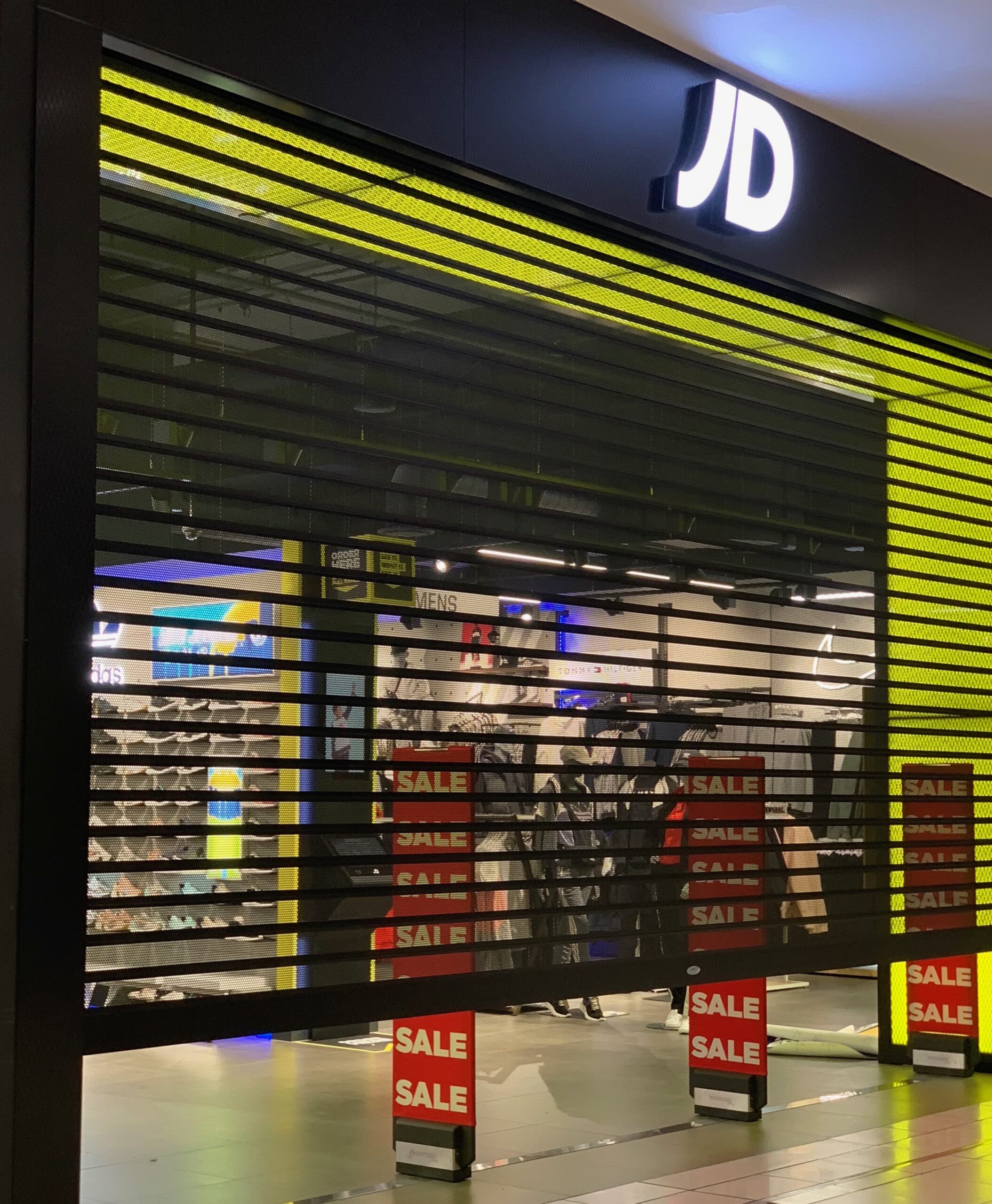

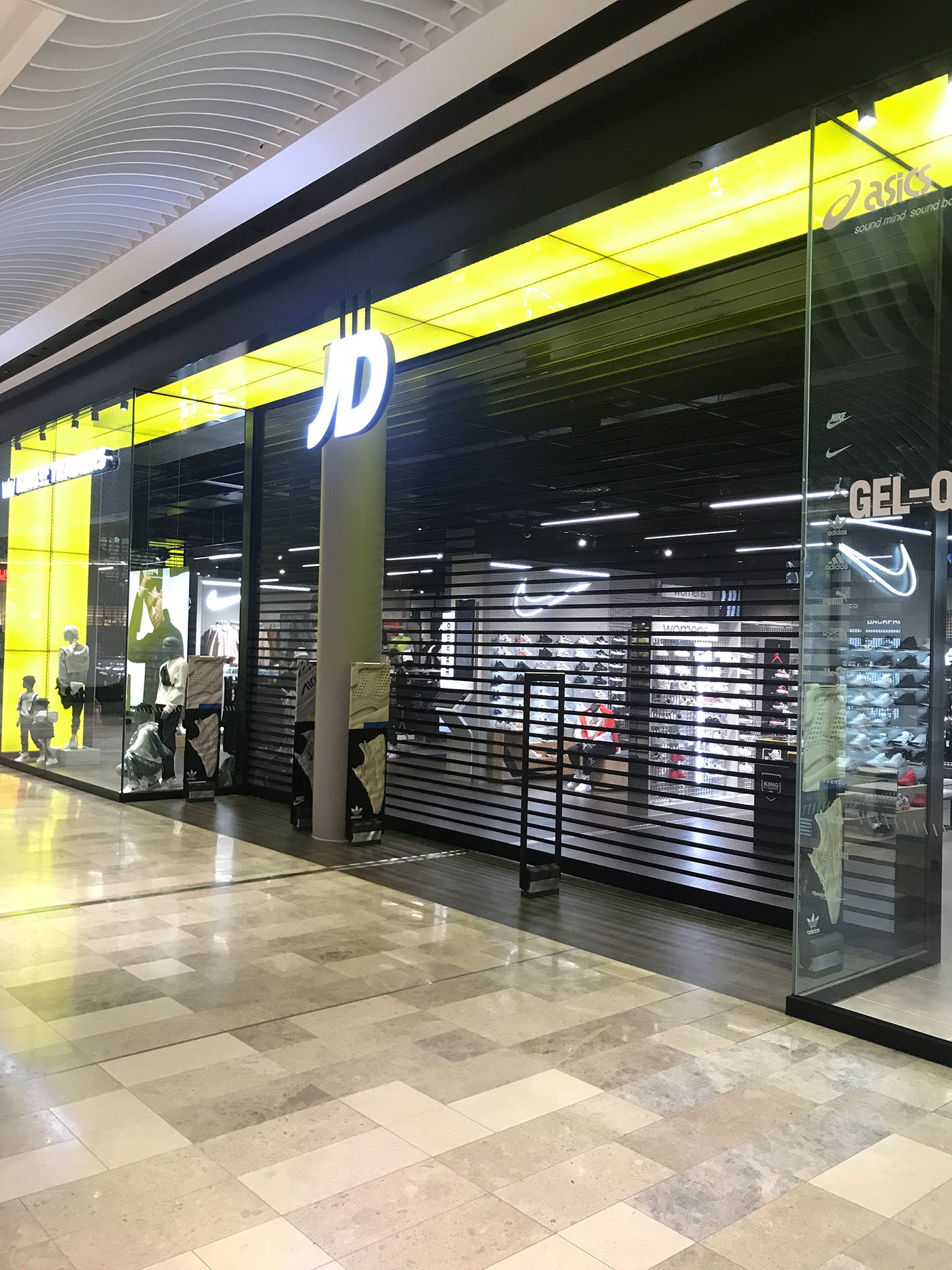

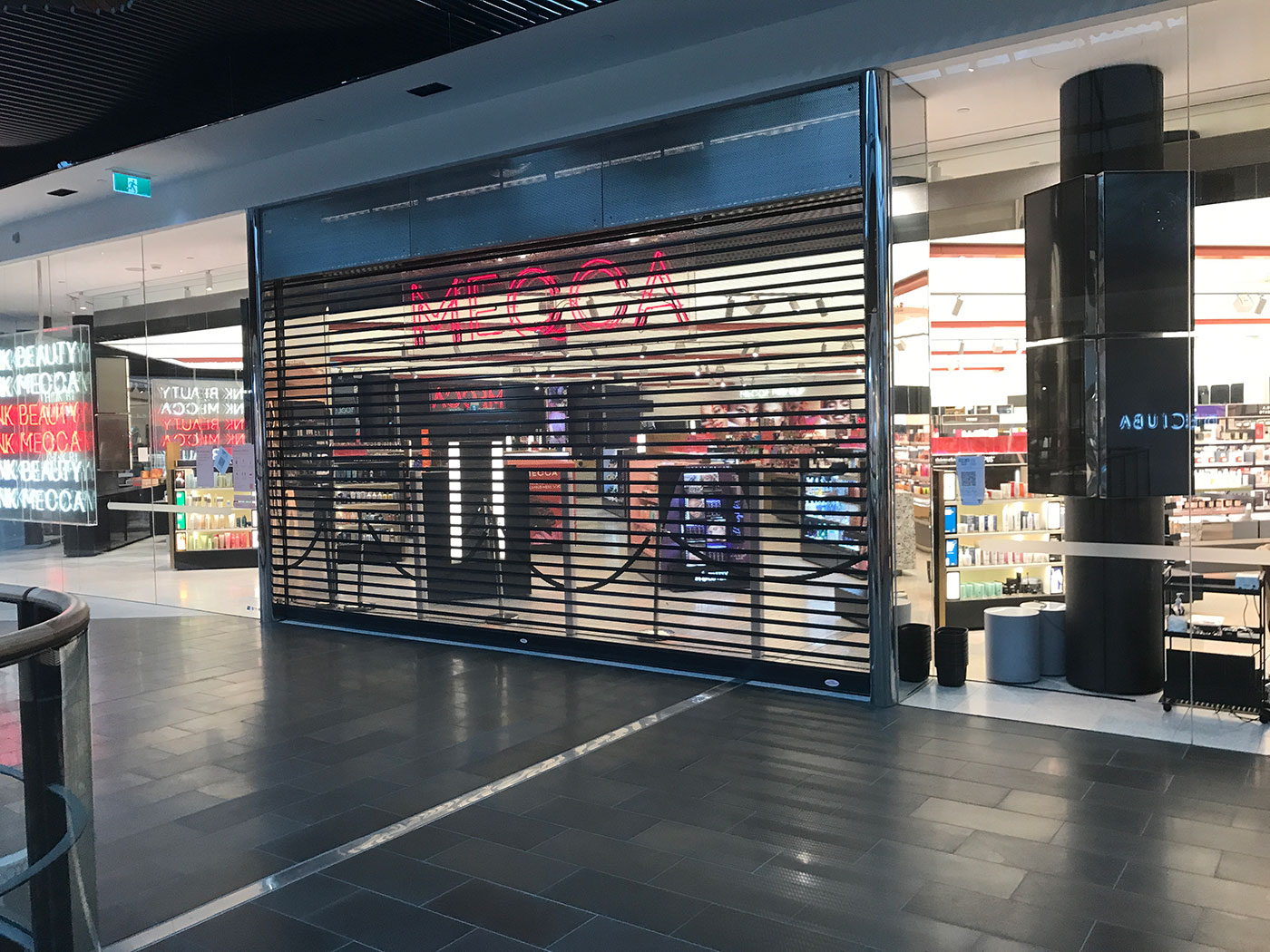

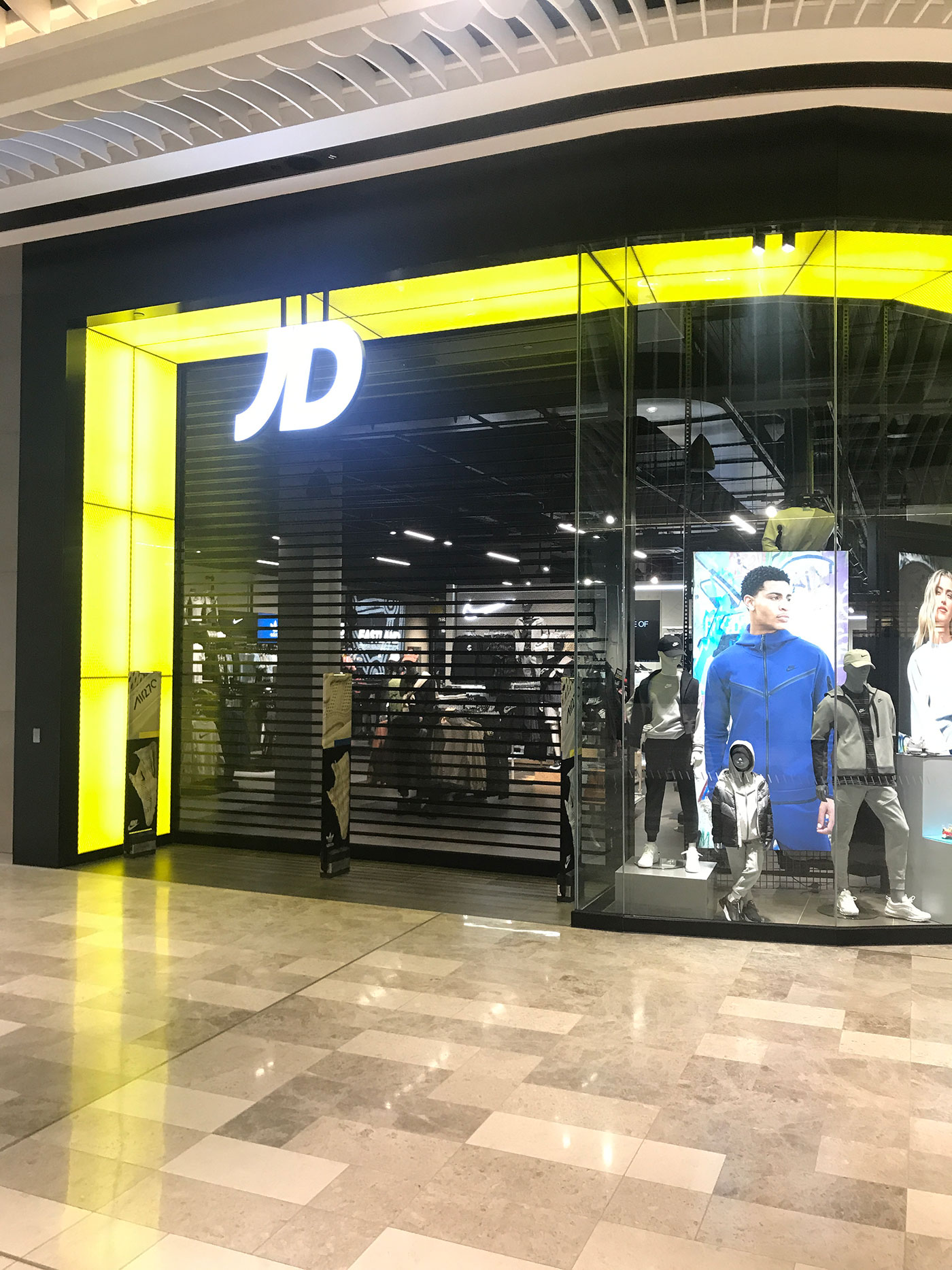

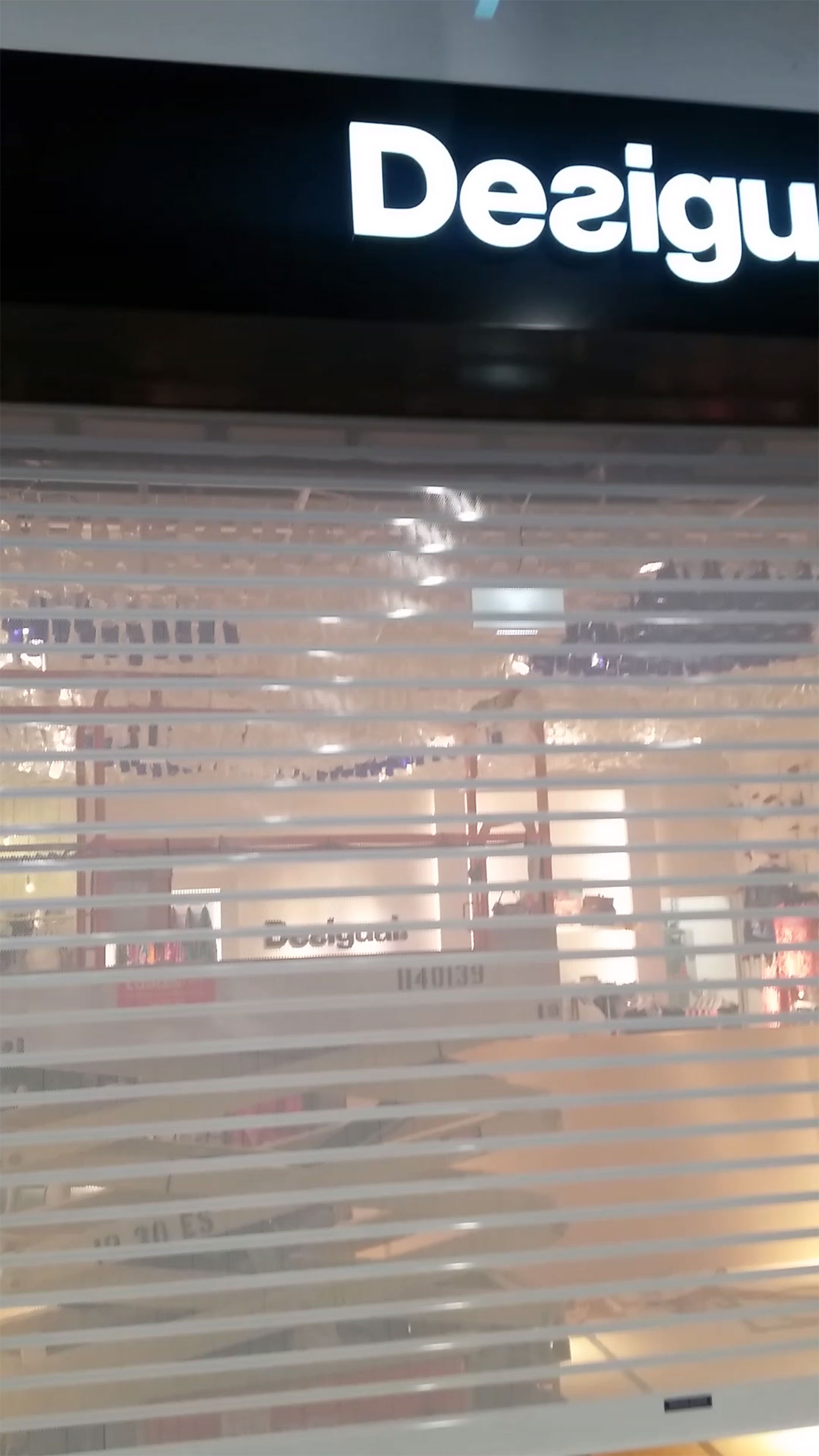

Ideal for Shopfronts, large frontage department stores, shopping centre malls and openings that Span up to 12 metres as well as Restaurants, Cafes and sporting clubs. The introduction of Slotting and our Multi-Hole perforations help with both Vision and ventilation requirements.

Manual Arco Series 3 can be manufactured up to 4000mm wide as a single door. Openings wider than this will incorporate removable mullions allowing the use of multiple doors. Simple option of Motorisation is also available.

For technical information refer to our technical sheet A1

The Arco Series 3 curtain is constructed by interlocked 75mm Aluminium slat.

The Bottom Rail which incorporates any locking requirements sits at a height of 90mm.

With the option for waist high locking.

Manual operation is by using Stainless steel handles (waist high) and the use of a pull hook to push open and pull closed where door is out of reach.

Motorised Open/Close via Standard flush fit key switch or option of remotes, card reader, keyless exiting etc.

All motorised doors supplied with battery backup as standard.

Standard finish is Clear anodised but can be powder coated as an optional extra.

Standard locking includes two-way keyed mortice lock mounted centrally in bottom rail and lock into holes drilled in side guides.

Options include rear snib for keyless exiting. As well as master keyable Lockwood profile.

Brackets constructed with slotted angle made from 90mm x 40mm mild steel.

Side guides are 50mm deep and 33mm wide. Fitted either between walls or face fixed behind nib walls.

Mullions at 180 degrees are 150mm wide. Our unique design enables any special angle requirements.

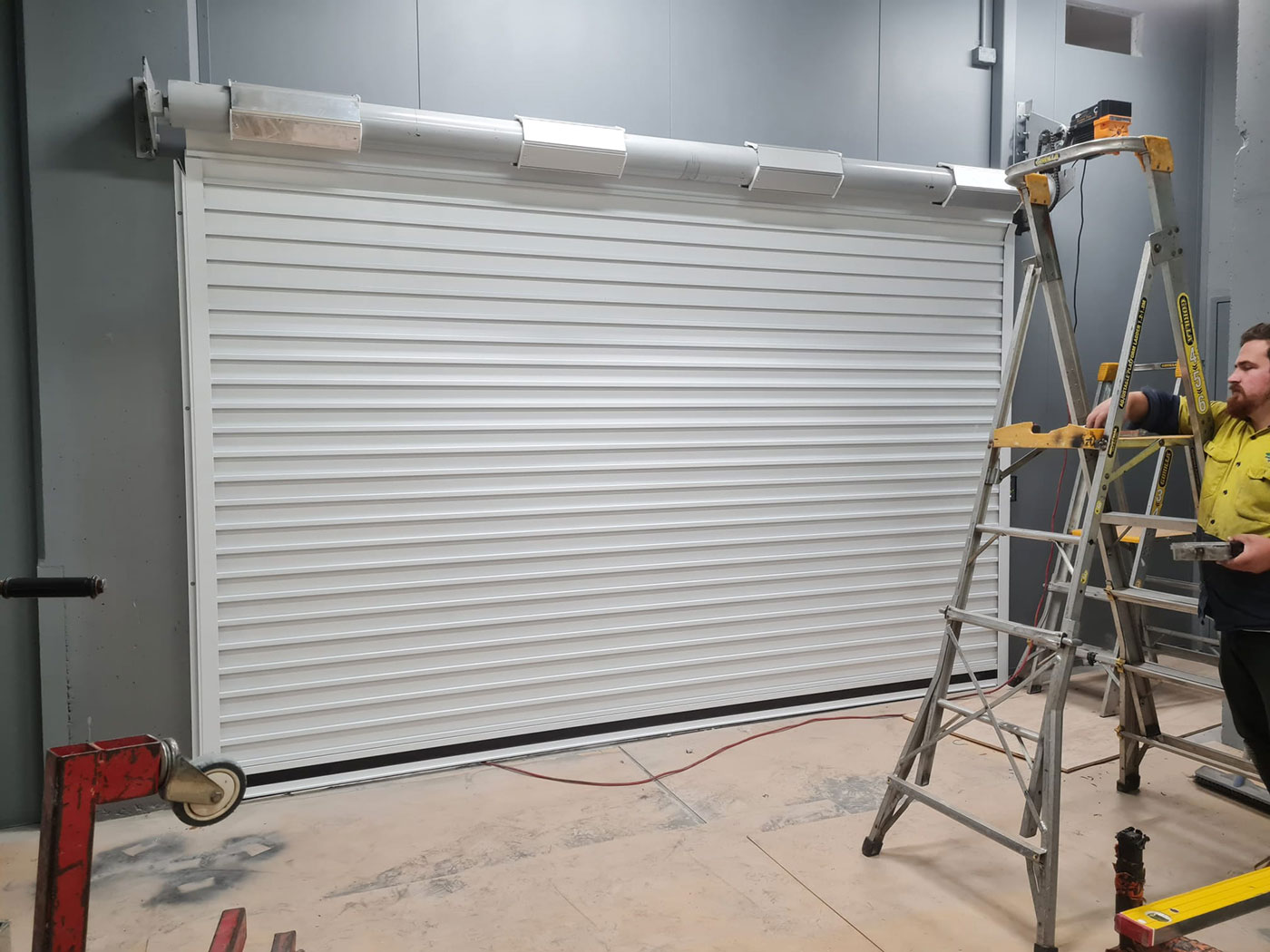

Drum is manufactured using various sized spiral duct tube.

Ranging from 250mm (motorised), 229mm and 150mm. Fully enclosed with bearing end caps on a 33mm shaft.

The use of Arco’s engineered helical coil springs is designed to counterbalance the curtain weight when tensioned.
